LM1084的英文介紹
The LM1084 is a regulator with a maximum dropout of 1.5 V at 5 A of load current. The device has the
same pinout as TI's industry standard LM317.
Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1084.
Fixed output voltage versions integrate the adjust resistors.
The LM1084 circuit includes a zener trimmed
bandgap reference, current limiting, and thermal shutdown.
Refer to LM1085 for the 3A version, and the LM1086 for the 1.5A version.

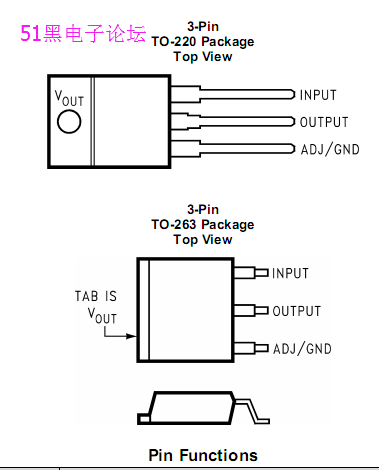

LM1084引腳圖：

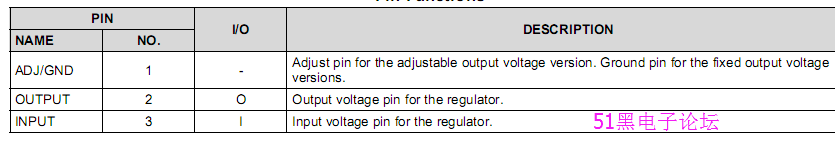

LM1084管腳功能介紹：
LM1084應用電路：
完整的pdf格式文檔51黑下載地址：
lm1084.pdf
