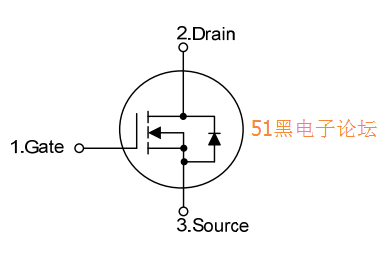

7N65-F引腳圖：
DESCRIPTION
The UTC 7N65-F is a high voltage power MOSFET and is
designed to have better characteristics, such as fast switching time,
low gate charge, low on-state resistance and have a high rugged
avalanche characteristics. This power MOSFET is usually used at
high speed switching applications in switching power supplies and
adaptors.
FEATURES
* RDS(ON) = 1.2Ω @ VGS = 10V, ID = 3.7A
* Fast switching capability
* Avalanche energy tested
* Improved dv/dt capability, high ruggedness
完整的pdf格式文檔51黑下載地址：
7N65-F.pdf
(347.84 KB, 下載次數: 9)
