#include <at89x52.h> //89s52頭文件
#define io_74hc165_SH_LD P1_0 //硬件設置
#define io_74hc165_CLK P1_1
#define io_74hc165_SDA P1_2
#define io_74hc164_SCK P1_3
#define io_74hc164_SDA P1_4
#ifndef RW_DEFINED
#define RW_DEFINED
void _snop_()
{
}
#endif
//Crystal at 12.0MHz 1MIPS
#define I2C_SDA P3_2 // 將p3.2口模擬數據口，必須要這樣。中斷接受數據
#ifdef I2C_SCL
#else
#define I2C_SCL P1_6 // 將p1.1口模擬時鐘口，默認
#endif
#ifdef SlaveAddress
#else
#define SlaveAddress 0x02 //地址
#endif
#ifdef MasterAddress
#else
#define MasterAddress 0x01 //主機地址
#endif
#define delayNOP(); {_snop_();_snop_();_snop_();_snop_();};
unsigned char s_control;
unsigned char s_note;
unsigned char s_svel;
bit nm;
bit SystemError; // 從機錯誤標志位
//--------------------------------------------------------------------------------------------------
// 函數名稱： iic_start()
// 函數功能： 啟動I2C總線子程序
//--------------------------------------------------------------------------------------------------
void iic_start(void)
{ EA=0; //時鐘保持高，數據線從高到低一次跳變，I2C通信開始
I2C_SDA = 1;
I2C_SCL = 1;
delayNOP(); // 延時5us
I2C_SDA = 0;
delayNOP();
I2C_SCL = 0;
}
//--------------------------------------------------------------------------------------------------
// 函數名稱： iic_stop()
// 函數功能： 停止I2C總線數據傳送子程序
//--------------------------------------------------------------------------------------------------
void iic_stop(void)
{
I2C_SDA = 0; //時鐘保持高，數據線從低到高一次跳變，I2C通信停止
I2C_SCL = 1;
delayNOP();
I2C_SDA = 1;
delayNOP();
I2C_SCL = 0;
EA=1;
}
//--------------------------------------------------------------------------------------------------
// 函數名稱： slave_ACK
// 函數功能： 從機發送應答位子程序
//--------------------------------------------------------------------------------------------------
void slave_ACK(void)
{
I2C_SDA = 0;
I2C_SCL = 1;
delayNOP();
I2C_SDA = 1;
I2C_SCL = 0;
}
//--------------------------------------------------------------------------------------------------
// 函數名稱： slave_NOACK
// 函數功能： 從機發送非應答位子程序，迫使數據傳輸過程結束
//--------------------------------------------------------------------------------------------------
void slave_NOACK(void)
{
I2C_SDA = 1;
I2C_SCL = 1;
delayNOP();
I2C_SDA = 0;
I2C_SCL = 0;
}
//--------------------------------------------------------------------------------------------------
// 函數名稱： check_ACK
// 函數功能： 主機應答位檢查子程序，迫使數據傳輸過程結束
//--------------------------------------------------------------------------------------------------
void check_ACK(void)
{
I2C_SDA = 1; // 將p1.0設置成輸入，必須先向端口寫1
I2C_SCL = 1;
F0 = 0;
if(I2C_SDA == 1) // 若I2C_SDA=1表明非應答，置位非應答標志F0
F0 = 1;
I2C_SCL = 0;
}
//--------------------------------------------------------------------------------------------------
// 函數名稱： IICSendByte
// 入口參數： ch
// 函數功能： 發送一個字節
//--------------------------------------------------------------------------------------------------
void IICSendByte(unsigned char ch)
{
unsigned char idata n=8; // 向I2C_SDA上發送一位數據字節，共八位
while(n--)
{
if((ch&0x80) == 0x80) // 若要發送的數據最高位為1則發送位1
{
I2C_SDA = 1; // 傳送位1
I2C_SCL = 1;
delayNOP();
I2C_SDA = 0;
I2C_SCL = 0;
}
else
{
I2C_SDA = 0; // 否則傳送位0
I2C_SCL = 1;
delayNOP();
I2C_SCL = 0;
}
ch = ch<<1; // 數據左移一位
}
}
//--------------------------------------------------------------------------------------------------
// 函數名稱： IICreceiveByte
// 返回接收的數據
// 函數功能： 接收一字節子程序
//--------------------------------------------------------------------------------------------------
unsigned char IICreceiveByte(void)
{
unsigned char idata n=8; // 從I2C_SDA線上讀取一上數據字節，共八位
unsigned char tdata=0;
while(n--)
{
I2C_SDA = 1;
I2C_SCL = 1;
tdata = tdata<<1; // 左移一位，或_crol_(temp,1)
if(I2C_SDA == 1)
tdata = tdata|0x01; // 若接收到的位為1，則數據的最后一位置1
else
tdata = tdata&0xfe; // 否則數據的最后一位置0
I2C_SCL=0;
}
return(tdata);
}
bit IICwaitACK()
{ //10us不屬于超時
unsigned char i=0;
bit j=0;
I2C_SDA=1;//輸入狀態
while (i!=10)
{
if (I2C_SCL==1) //先SCL=1 SDA=0后SCL=0 SDA=1
{
j=1;
break;
}
i++;
}
return j;
}
//--------------------------------------------------------------------------------------------------
// 函數名稱： slavesenddata
// 入口參數： control,note and vel
// 函數功能： 發送MIDI信息在IIC總線上
//--------------------------------------------------------------------------------------------------
//保證Simple.不使用標準I2C協議。 發送從機地址，等ACK,再發送發送3byte數據，等ACK.It 's very simple.
void slavesenddata(unsigned char control,unsigned char note,unsigned char svel)
{
EA=0;
IT0=0; //外中斷0為 下降沿觸發 設定成低電平出發的話 容易導致 誤觸發
EX0=0; //開外部中斷0
iic_start();
SystemError=1;
IICSendByte(SlaveAddress);//發送地址
if (IICwaitACK()) //等主機的回應
{
IICSendByte(control);
IICSendByte(note);
IICSendByte(svel);
if (IICwaitACK()) //等主機的回應
{
SystemError=0;
}
}
iic_stop();
IT0=1; //地址不對就不去管了
EX0=1; //開中斷繼續
EA=1;
}
void initial_i2c()
{
IT0=1; //外中斷0為 下降沿觸發 設定成低電平出發的話 容易導致 誤觸發
EX0=1; //開外部中斷0
EA=1;
}
void recvint0() interrupt 0 using 2
{
unsigned char mAddress=0;
EA=0;
IT0=0; //
EX0=0; //關中斷防止干擾
//slave_ACK();
mAddress=IICreceiveByte();
if (mAddress==MasterAddress)
{
slave_ACK();
s_control=IICreceiveByte();
s_note=IICreceiveByte();
s_svel=IICreceiveByte();
nm=1; //提示主程序有新的消息，請注意查收～
}
else
{//延時，不能這樣退出去引發中斷
//ACK占用兩個周期，接受數據占用10個周期。延夠時了就跑
delayNOP();
delayNOP();
delayNOP();
delayNOP();
delayNOP();
delayNOP();
delayNOP();
delayNOP();
}
IT0=1; //地址不對就不去管了
EX0=1; //開中斷繼續
EA=1;
}
//下面是引腳的連接以及相關必要的宏定義
//Crystal at 12MHz
#ifdef io_74hc165_SH_LD
#else
#define io_74hc165_SH_LD P1_0 //默認設置
#endif
#ifdef io_74hc165_CLK
#else
#define io_74hc165_CLK P1_1
#endif
#ifdef io_74hc165_SDA
#else
#define io_74hc165_SDA P1_2
#endif
#define io_74hc165_SH_HIGH io_74hc165_SH_LD=1;
#define io_74hc165_SH_LOW io_74hc165_SH_LD=1;
#ifdef io_74hc164_SCK
#else
#define io_74hc164_SCK P1_3
#endif
#ifdef io_74hc164_SDA
#else
#define io_74hc164_SDA P1_4
#endif
#define IO_74HC164_SCK_HIGH io_74hc164_SCK = 1 ;
#define IO_74HC164_SCK_LOW io_74hc164_SCK = 0 ;
#define IO_74HC164_SDA_INPUT io_74hc164_SDA
//使用165來接受鍵盤數據。兩片作為164輸出。
#define uint8 unsigned char
#define uchar unsigned char
#define uint unsigned int
uchar keytype=2;
//#define keytype 2
#define blacklist_time 240
uchar kbtime=0; //記錄時間,占2個字節
uchar keynumber[2][7]; //記錄鍵位，占14個字節
uchar blacklist[7];
//uchar code seg[]={"admin"};
/*0->NoTouch Response
1->Very Soft Touch Response
2->Soft Touch Response
3->Medium Touch Response
4->Hard Touch Response
5->Very Hard Touch Response
*/
uchar code vel[5][251]=
{
{//Very Soft
127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,127,126,126,125,124,124,123,122,122,121,120,120,119,118,118,117,116,116,115,114,114,113,112,112,111,110,110,109,108,108,107,106,106,105,104,104,103,102,102,101,100,100,99,98,98,97,96,96,95,94,94,93,92,92,91,90,90,89,88,88,87,86,86,85,84,84,83,82,82,81,80,80,79,78,78,77,
76,76,75,74,74,73,72,72,71,70,70,69,
68,68,67,66,66,65,64,64,63,62,62,61,
60,60,59,58,58,57,56,56,55,54,54,53,
52,52,51,50,50,49,48,48,47,46,46,45,
44,44,43,42,42,41,40,40,39,38,38,37,
36,36,35,34,34,33,32,32,31,30,30,29,
28,28,27,26,26,25,24,24,23,22,22,21,
20,20,19,18,18,17,16,16,15,14,14,13,
12,12,11,10,10,9,8,8,7,6,6,5,
4,4,3,2,2,1,0
}
,
{//Soft
127,127,127,127,127,127,127,127,127,
127,127,127,127,127,127,127,127,127,
127,127,127,127,127,127,127,127,127,
127,127,127,127,127,127,127,127,126,
125,125,124,124,123,122,122,121,121,
120,120,119,118,118,117,117,116,115,
115,114,114,113,112,112,111,111,110,
110,109,108,108,107,107,106,105,105,
104,104,103,102,102,101,101,100,100,
99,98,98,97,97,96,95,95,94,94,93,92,
92,91,91,90,90,89,88,88,87,87,86,85,
85,84,84,83,82,82,81,81,80,80,79,78,
78,77,77,76,75,75,74,74,73,72,72,71,
71,70,70,69,68,68,67,67,66,65,65,64,
64,63,62,62,61,61,60,60,59,58,58,57,
57,56,55,55,54,
54,53,52,52,51,51,50,50,49,48,48,47,
47,46,45,45,44,44,43,42,42,41,41,40,
40,39,38,38,37,37,36,35,35,34,34,33,
32,32,31,31,30,30,29,28,28,27,27,26,
25,25,24,24,23,22,22,21,21,20,20,19,
18,18,17,17,16,15,15,14,14,13,12,12,
11,11,10,10,9,8,8,7,7,6,5,5,
4,4,3,2,2,1,1,0
}
,
{//Medium
127,127,127,127,127,127,127,127,127,
126,126,125,125,124,124,123,123,122,
122,121,121,120,120,119,118,118,117,
117,116,116,115,115,114,114,113,113,
112,112,111,111,110,110,109,108,108,
107,107,106,106,105,105,104,104,103,
103,102,102,101,101,100,100,99,98,98,
97,97,96,96,95,95,94,94,93,93,92,92,
91,91,90,90,89,88,88,87,87,86,86,85,
85,84,84,83,83,82,82,81,81,80,80,79,
78,78,77,77,76,76,75,75,74,74,73,73,
72,72,71,71,70,70,69,68,68,67,67,66,
66,65,65,64,64,63,63,62,62,61,61,60,
60,59,58,58,57,57,56,56,55,55,54,54,53,
53,52,52,51,51,50,50,49,48,48,47,47,
46,46,45,45,44,44,43,43,42,42,41,41,
40,40,39,38,38,37,37,36,36,35,35,34,
34,33,33,32,32,31,31,30,30,29,28,28,
27,27,26,26,25,25,24,24,23,23,22,22,
21,21,20,20,19,18,18,17,17,16,16,15,
15,14,14,13,13,12,12,11,11,10,10,9,
8,8,7,7,6,6,5,5,4,4,3,3,
2,2,1,1,0
}
,
{//Hard
100,99,99,98,98,98,97,97,96,96,96,95,
95,94,94,94,93,93,92,92,92,91,91,90,
90,90,89,89,88,88,88,87,87,86,86,86,
85,85,84,84,84,83,83,82,82,82,81,81,
80,80,80,79,79,78,78,78,77,77,76,76,
76,75,75,74,74,74,73,73,72,72,72,71,
71,70,70,70,69,69,68,68,68,67,67,66,
66,66,65,65,64,64,64,63,63,62,62,62,
61,61,60,60,60,59,59,58,58,58,57,57,
56,56,56,55,55,54,54,54,53,53,52,52,
52,51,51,50,50,50,49,49,48,48,48,47,
47,46,46,46,45,45,44,44,44,43,43,
42,42,42,41,41,40,40,40,39,39,38,38,
38,37,37,36,36,36,35,35,34,34,34,33,
33,32,32,32,31,31,30,30,30,29,29,28,
28,28,27,27,26,26,26,25,25,24,24,24,
23,23,22,22,22,21,21,20,20,20,19,19,
18,18,18,17,17,16,16,16,15,15,14,14,
14,13,13,12,12,12,11,11,10,10,10,9,
9,8,8,8,7,7,6,6,6,5,5,4,
4,4,3,3,2,2,2,1,1,0,0
}
,
{//Very Hard
92,92,91,91,91,90,90,90,89,89,88,88,
88,87,87,87,86,86,85,85,85,84,84,84,
83,83,82,82,82,81,81,81,80,80,80,79,
79,78,78,78,77,77,77,76,76,75,75,75,
74,74,74,73,73,72,72,72,71,71,71,70,
70,70,69,69,68,68,68,67,67,67,66,66,
65,65,65,64,64,64,63,63,62,62,62,61,
61,61,60,60,59,59,59,58,58,58,57,57,
57,56,56,55,55,55,54,54,54,53,53,52,
52,52,51,51,51,50,50,50,49,49,48,48,
48,47,47,47,46,46,45,45,45,44,44,44,
43,43,42,42,42,41,41,41,40,40,40,39,
39,38,38,38,37,37,37,36,36,35,
35,35,34,34,34,33,33,32,32,32,31,31,
31,30,30,29,29,29,28,28,28,27,27,27,
26,26,25,25,25,24,24,24,23,23,22,22,
22,21,21,21,20,20,20,19,19,18,18,18,
17,17,17,16,16,15,15,15,14,14,14,13,
13,12,12,12,11,11,11,10,10,10,9,9,
8,8,8,7,7,7,6,6,5,5,5,4,
4,4,3,3,2,2,2,1,1,1,0,0
}
};
uchar count_begin[7][7]; //記錄按鍵時間，占49個字節
//在鋼琴上壓鍵時間大于500mS可以幾乎認為是沒有力度了啊
//VIO
//VIO程序開始。
void v_74hc164WriteData_f( uint8 Dat ) //向74HC164寫一個字節的內容
{ //即可并行輸出該字節
uint8 i = 0 ;
uint8 SendData = Dat ;
for( i = 8 ; i > 0 ; i-- )
{
IO_74HC164_SCK_LOW
SendData <<= 1 ;
IO_74HC164_SDA_INPUT = CY ;
IO_74HC164_SCK_HIGH
}
}
uchar v_74hc165ReadData_f()
{
uchar i,c=0x00;
for (i=0;i<8;i++)
{
c<=1; //0000 0010
if(io_74hc165_SDA)
{c=c|0x01;}
io_74hc165_CLK=0; //下降沿有效
io_74hc165_CLK=0;
io_74hc165_CLK=1;
//進位
}
return c;
}
//VIO結束
/*
74HC1651 BIT1~8 KB DATA 1~8
74HC1652 BIT1~8 KB DATA 9~16
74HC5952 BIT1~8 KB CS 1～8
*/
void initial_clock()
{
TMOD=0x00;
TH0=0x10;
TL0=0xC1;
PCON=0x80;
}
/*
MIDI命令簡表
命令代碼
（cc）
命令說明
數據kk含義及說明
數據vv含義及說明
8+ 通道號
關閉音符
對應的MIDI音符0－127
關閉音符的速度值
9+ 通道號
開啟音符
對應的MIDI音符0－127
壓下琴鍵的速度值（力度）
A+ 通道號
觸后壓力
對應的MIDI音符0－127
對應音符的觸后壓力值
B+ 通道號
控制器
控制器號0－77
77－7F為通道模式信息
控制器值
C+ 通道號
音色切換
音色號 0－127
無該字節數據
D+ 通道號
通道壓力
該通道全部鍵盤的觸后壓力
無該字節數據
E+ 通道號
彎音輪
彎音輪低位數據
彎音輪高位數據
F
系統普通信息、實時信息、及高級信息代碼
忽略
忽略
*/
void initial_keyboard() //初始化鍵盤
{
v_74hc164WriteData_f(0x00);//關掉后排段選
v_74hc164WriteData_f(0x00);//關掉前排段選
}
//keynumber[0]定義為第一排
//keynumber[1]定義為第二排
void scan_key()
{
uchar ts=0; //開始的時間
uchar kb_cs; // 段選
uchar i=0;
uchar j=0; //循環變量
uchar outa=0;
uchar outb=0;
uchar csp;
uchar lkb,hkb;
uchar atime;
uchar temp;//臨時
kb_cs=0x01; //00000001 00000010
while (i!=8)
{
ts=kbtime;
v_74hc164WriteData_f(0x00);//關掉前排段選
v_74hc164WriteData_f(kb_cs);//輸出后排段選
//高在前，低在后
//以下代碼輸出下排力度檢測的信號
io_74hc165_SH_HIGH //拉高并行置數
outa=v_74hc165ReadData_f(); //讀入輸出
io_74hc165_SH_LOW //拉低并行置數
//結束，以下代碼輸出前排檢測開關的信號
initial_keyboard();//保險點
v_74hc164WriteData_f(kb_cs); //輸出前排段選
v_74hc164WriteData_f(0x00); //關掉后排段選
csp=0x01;//初始化指針
io_74hc165_SH_HIGH //拉高并行置數
outb=v_74hc165ReadData_f(); //讀入輸出
io_74hc165_SH_LOW //拉低并行置數
initial_keyboard();//全部關掉
//與原來的鍵值進行比較～
lkb=outb^keynumber[0][i]; //前排與原來的鍵值比較
hkb=outa^keynumber[1][i]; //后排與原來的鍵值比較
// 1&1=1 1&0=0 0&1=0 0&0=0
// 1^1=0 1^0=0 0^1=0 0^0=0所以用來做比較。有變化的就輸出1
keynumber[0][i]=outb; //前排，記錄下新的鍵值
keynumber[1][i]=outa; //后排

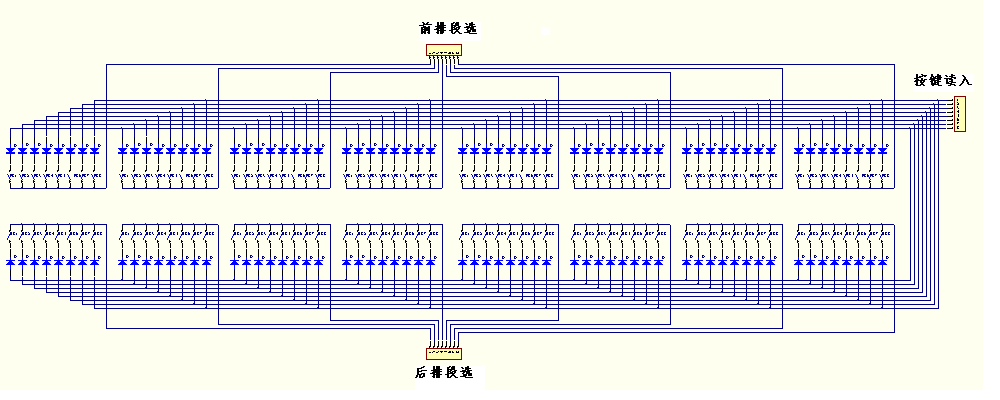

//原理：在琴鍵下面有兩個開關，順序為K1,K2。按照順序接通。只能兩個全導通/兩個全關斷，或者只有K1導通。在K1導通的時候lkb&csp發生變化并且在前排鍵上也發生變化
//所以程序會在一個2維數組中記錄閉合的時間，然后繼續掃過去。等到第二次掃到這組鍵的話
while(j!=8)
{
if ((lkb&csp)!=0) // 前排觸點是否有變化
{ if ((outb&csp)!=0)
{
//前排的按鍵按下了
count_begin[i][j]=ts;
}
else
{//前排鍵松開了就復原黑名單
temp=0x01;
temp=temp<<j;
if ((blacklist[i]&temp)!=0)//清白的良民的不要
{
temp=0x01;
temp=temp<<j;
blacklist[i]=blacklist[i]^temp;
//slavesenddata(0x02,((i+1)*8-j)+32,0x00); //關閉超時的琴鍵
}
//else
//{
//發送關音信號
//按照本人通訊協議，0x01就是開，0x02就是關
slavesenddata(0x02,((i+1)*8-j)+32,0x00); //前排鍵關閉則關音，反正最后還是要關的，前面的就省了！
//}
}
}
//掃描溢出鍵
atime=ts-count_begin[i][j]; //用當前時間減去按下時間
if (atime>blacklist_time)
{
//超時了
temp=0x01;
temp=temp<<j;
//左移j位
//然后XOR Blacklist
//Because 1^1=0 0^1=1 1^0=1 0^0=0
blacklist[i]=blacklist[i]^temp;//打入黑名單
slavesenddata(0x01,((i+1)*8-j)+32,0); //呵呵，還是給主機發送一個0力度信號吧。畢竟鋼琴的弦音共振需要他。
}
//地毯式掃描溢出鍵，不怕找不到
if (((hkb&csp)!=0) && ((lkb&csp)!=0)) //如果前排鍵，后排鍵有變化
{
//前后排的鍵都按下了。查看時間～
/*
atime=ts-count_begin[i][j]; //用當前時間減去按下時間
if (atime>blacklist_time)
{
//超時了
temp=0x1;
temp=temp<<j;
//左移j位
//然后XOR Blacklist
//Because 1^1=0 0^1=1 1^0=1 0^0=0
blacklist[i]=blacklist[i]^temp;//打入黑名單
}
else
{//沒超時
*/
if (((outa&csp)!=0) && ((outb&csp)!=0)) //并且都在現在按下了的話
{ //親愛的blacklist，偶來了～
temp=0x01;
temp=temp<<j;
//temp=(~temp);
//00100010 AND 00100000 = 1
if ((blacklist[i]&temp)==0) //防止定時器溢出后繼續發聲～，查看黑名單
{
atime=ts-count_begin[i][j]; //用當前時間減去按下時間
//第28個鍵是中央C,0x01開音
slavesenddata(0x01,((i+1)*8-j)+32,vel[keytype][atime]);
}
}
}
csp=csp<<1; //指針左移
j++;//計數器+1
}
kb_cs=(kb_cs<<1); //段選指針左移
i++;//計數器+1
}
}
void kb_initial() //初始化鍵盤函數
{
initial_clock();
initial_keyboard();
}
//========中斷服務程序，每2 毫秒為 kbtime 加1，============================
void timer0() interrupt 1 using 3 /*interrupt sub of timer0*/
{ TH0=0x10;
TL0=0xC1;//送初值
//頻率為12M時2mS中斷一次
kbtime++;
}
void config()
{
switch(s_control) //查看命令
{
case 0x02: //這個是設置力度曲線的
keytype=s_note;
break;
default:
break; //好像只有一種命令誒,感覺好浪費～
}
}
void main()
{
kb_initial();//初始化鍵盤
while (1)//死循環
{
scan_key();//不停的掃描鍵盤
if (nm==1)
{
//有新的消息。我就去查收
nm=0;//消掉標志位
config();
}
}
}
全部源碼下載地址：http://m.raoushi.com/f/mdid.rar
編譯后約占用1K ROM。效率夠高～
不過這個最后還要和主控ATmega8通信。
還是半成品。
做鍵盤也是要技術的。做電子琴更要技術。哇哈哈哈！ 本程序的正式版本請看：http://m.raoushi.com/mcu/1636.html
89S52單片機的Flash ROM為8KByte.內存為256Byte.
PS:程序本來是分塊設計的。為了發上網就用cpp處理了下。include 全部被替換掉了。
